ORION mini 7kW
Charging Station for Home or Work
Easy to use, install and upgrade.
Compatible with all electic cars on the market today and in the future.
Best suited for home use.

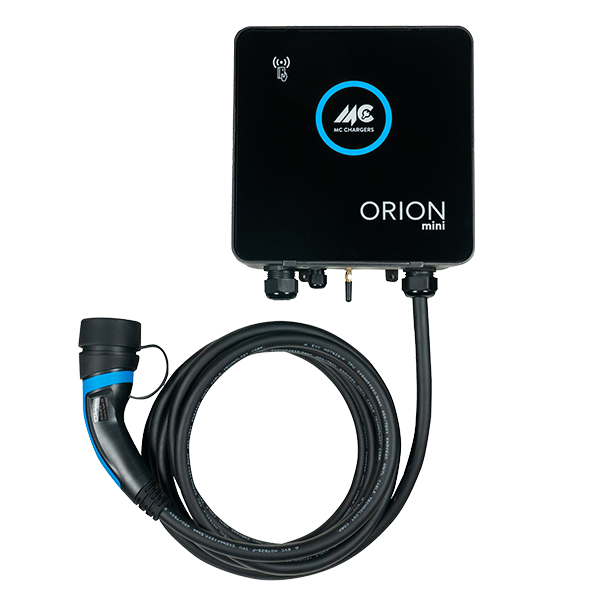

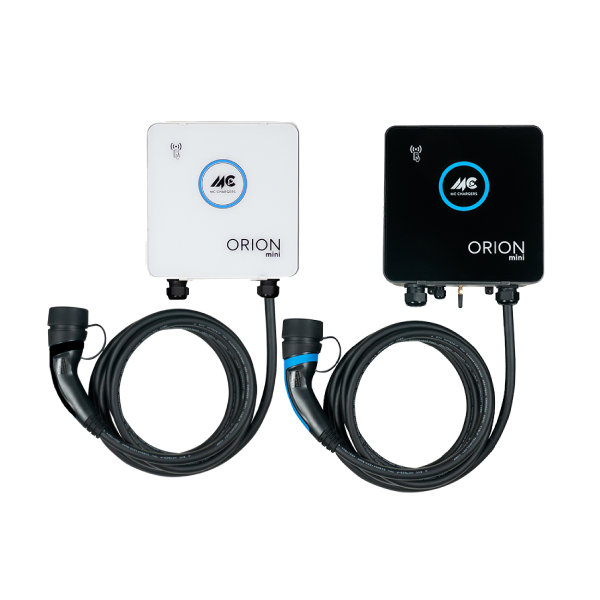

MC-CHARGERS, having completed the range of public chargers, proceeds with the private charging station series ORION mini. Focusing on quality and high design aesthetics which is already established by ORION range of products, ORION mini is ideal for home or work installations, has a metallic and polycarbonate enclosure and small size, easy to install. Orion mini is available in 2 power leverls, 7kW and 22kW, while the built in 5m length tethered cale with Type 2 outlet, enables a quick and easy connection with the EV.
RFID, MC-CHARGER’S phone app or any other OCPP phone app can be used for user identification and management of the charger. Can be connected to the internet via WIFI, Ethernet or GSM, meeting the needs of all installations. Through MC-CHARGERS’s phone app. ORION mini can be set to different power level’s according to the levels of consumption at the building, avoiding overloads and leading to a proper load management and energy efficiency.
Power: 7kW
Charge:
Installation:
Protection: ΙΡ54, IK10
User authentication:
|
AC Input Characteristics
|
AC Input Voltage | 230VAC ± 10% |
| Input Type | 1P + N + PE | |
| AC Input Current | 32Α | |
| Frequency | 50/60Ηz | |
|
AC Output Characteristics
|
AC Voltage Output | 230VAC |
| Power | 7 kW max | |
| AC Output current | 32 A | |
|
Operating Conditions
|
Operating Temperature | -25°C – +60°C |
| Storage Temperature | -30°C – + 70°C | |
| Humidity | 5% – 95% RH (no condensation) | |
| Installation Alltitude | Up to 2000m | |
|
Construction
|
Enclosure | Steel, Polycarbonate |
| IP Protection | ΙΡ54 | |
| Mechanical Impact ΙΚ | ΙΚ10 | |
| Charging Mode | Mode 3 | |
| Outputs | Built in 5m length tethered cable with Type 2 output | |
| Charger Dimensions | 253×253χ105,5mm (width x height x depth) | |
| Weight | 5 kg | |
|
Electronic Parts
|
Energy Meter | Built in energy meter |
| Current Setting | AC output current adjustment from 10% up to 100% | |
|
Protective Devices
|
Built in DC Residual Current Protection 6mA (DC leakage 6mA according to ΕΝ 62955) ** | |
| Ground Loss Detection | ||
| Overtemperature Protection (ΟΤΡ) | ||
| In the distribution panel : MCCB 2P Type C 40Α (or fuses 35 Α) to protect the charger and cabling | ||
| In the distribution panel : Residual Current Protection RCD 2P Type A 40A | ||
| In the distribution panel : Surge Protection Device Type 2 according to ΕΝ 60364 | ||
| Communication Protocol | S2W & OCPP 1.6 JSON | |
| User Identification | RFID | |
| Connectivity | WIFI & Ethernet or GSM | |
| Charging | Charging Time | 6-7 hours |
|
Installation
|
Grid Circuit Breaker | MCCB 2P Type C 40Α (or fuses 35 Α) to protect the charger and cabling in the distribution panel |
| Level of Grid Power Supply | Νο 3 – Level of Grid Power Supply 8kVA *** | |
| Explosive zones | Installation outside ATEX zones | |
| Grid Substation | Not Applicable | |
| Cable cross section | 3x10mm2(Cable length up to 50m), 3x16mm2 (cable length >50m) | |
| Certification | Regulations | IEC EN 61851-1:2019, IEC 61851-21-2:2018, EN 62196- 1:2014, EN 62196-2:2016, CE |
| Warranty | Time of Warranty | 2 years |
