ORION midi CG
Charging Station for Home or Work
Easy to use and install.
Compatible with all electric cars on the market today and in the future.
Best suited for semi-public use.

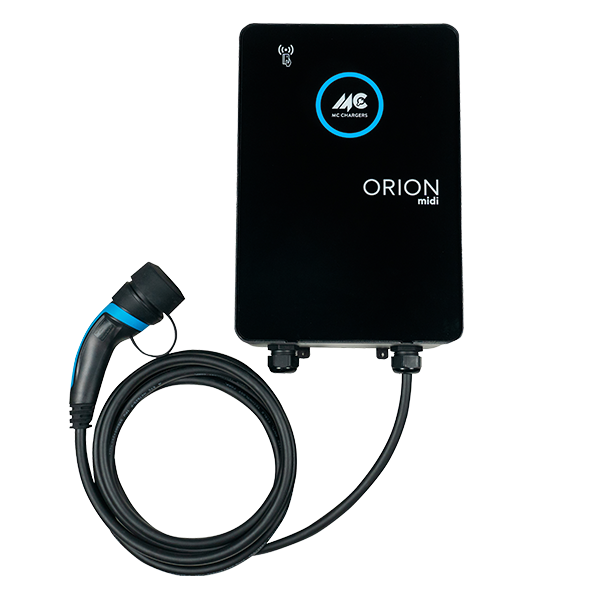

MC-CHARGERS, having completed the range of public chargers, proceeds with the semi-public/private charging station series ORION midi. Focusing on quality and high deign aesthetics which is already established by ORION and ORION mini range of products, ORION midi is ideal for private installations such as hotels, work areas, restaurants, stores. The metallic enclosure, small size and the integrated RCD Type A + DC leakage detector of 6mA and MID energy meter enable the easy and low-cost installation achieving the best quality and protection for the user and property. ORION midi is available in 2 power levels, 7kW and 22kW, with socket Type 2 or built in 5m length tethered cable with Type 2 outlet. www.mc-chargers.com RFID, MC-CHARGERS’s phone app or any other OCPP phone app can be used for user identification and management of the charger. ORION midi can be connected to the internet via WIFI, Ethernet or GSM, meeting the needs of all installations. Through MC-CHARGERS’s phone app, ORION midi can be set to different power levels according to the levels of consumption at the building with no extra installation cost, enabling a static load management. Dynamic load management is available to all models with an extra installation of energy meter in the distribution panel. The load management capability is crucial to all installations to avoid overloads and leads to a proper energy use and better energy efficiency.
Power: 7kW
Charge:
Installation:
Protection: ΙΡ54, IK10
User authentication:
| OD-07CS & OD-07CG | OD-22CS & OD-22CG | ||
| AC Input Characteristics | AC Input Voltage | 230V AC ± 10% | 400V AC ± 10% |
| Input Type | 1P + N + PE | 3P + N + PE | |
| AC Input Current | 32Α | 32Α / phase | |
| Frequency | 50/60Ηz | 50/60Ηz | |
| AC Output Characteristics | AC Voltage Output | 230VAC | 400VAC |
| Power | 7 kW max | 22 kW max | |
| AC Output current | 32 A | 32 A / φάση | |
| Operating Conditions | Operating Temperature | -25°C – +60°C | -25°C – +60°C |
| Storage Temperature | -30°C – +70°C | -30°C – +70°C | |
| Humidity | 5% – 95% RH (χωρίς συμπύκνωση) | 5% – 95% RH (χωρίς συμπύκνωση) | |
| Installation Alltitude | Up to 2000m | Up to 2000m | |
| Construction | Enclosure | Steel, Polycarbonate | Steel, Polycarbonate |
| IP Protection | ΙΡ54 | ΙΡ54 | |
| Mechanical Impact ΙΚ | ΙΚ10 | ΙΚ10 | |
| Charging Mode | Mode 3 | Mode 3 | |
| Outputs | Built in 5m length tethered cable with Type 2 output or Socket Type 2 | Built in 5m length tethered cable with Type 2 output or Socket Type 2 | |
| Charger Dimensions | 265×385χ143 mm (width x height x depth) | 265×385χ143 mm (width x height x depth) | |
| Weight | 5 kg | 5 kg | |
| Electronic Parts | Energy Meter | Built in MID energy meter | Built in MID energy meter |
| Current Setting | AC output current adjustment from 10% up to 100% | AC output current adjustment from 10% up to 100% | |
| Protective Devices | Built in RCD Type A (30mA AC leakage) + DC Residual Current protection 6mA (DC leakage 6mA according to ΕΝ 62955) ** |
Built in RCD Type A (30mA AC leakage) + DC Residual Current protection 6mA (DC leakage 6mA according to ΕΝ 62955) ** |
|
| Ground Loss Detection | Ground Loss Detection | ||
| Overtemperature Protection (ΟΤΡ) | Overtemperature Protection (ΟΤΡ) | ||
| In the distribution panel : MCCB 2P Type C 40Α (or fuses 35 Α) to protect the charger and cabling |
In the distribution panel : MCCB 2P Type C 40Α (or fuses 35 Α) to protect the charger and cabling |
||
| In the distribution panel : Surge Protection Device Type 2 according to ΕΝ60364 | In the distribution panel : Surge Protection Device Type 2 according to ΕΝ60364 | ||
| Communication Protocol |
S2W & OCPP 1.6 JSON | S2W & OCPP 1.6 JSON | |
| User Identification | RFID | RFID | |
| Connectivity | WIFI και Ethernet ή GSM | WIFI και Ethernet ή GSM | |
| Installation | Grid Circuit Breaker | MCCB 2P Type C 40Α (or fuses 35 Α) to protect the charger and cabling in the distribution panel |
MCCB 4P Type C 40Α (or fuses 35 Α) to protect the charger and cabling in the distribution panel |
| Level of Grid Power Supply | Νο 03 – Level of Grid Power Supply8kVA *** |
Νο 3 – Level of Grid Power Supply 35kVA *** |
|
| Explosive zones | Installation outside ATEX zones | Installation outside ATEX zones | |
| Grid Substation | Not Applicable | Not Applicable | |
| Cable cross section | 3x10mm2 (Cable length up to 60m), 3x16mm2 (cable length >60m) |
5x10mm2 (Cable length up to 120m), 5x16mm2 (cable length >100m) |
|
| Certification | Regulations | IEC EN 61851-1:2019, IEC 61851-21-2:2018, EN 62196- 1:2014, EN 62196-2:2016, CE | IEC EN 61851-1:2019, IEC 61851-21-2:2018, EN 62196- 1:2014, EN 62196-2:2016, CE |
| Warranty | Time of Warranty | 2 years | 2 years |
**ORION midi has built in RCD Type A + DC residual current protection 6mA. The electrical installer should install in the distribution
panel an SPD Type 2 and an MCCB Circuit Breaker Type C 40A to protect the charging station and the user.
*** The needed level of grid power supply is calculated each time based on the power demands of the installation, especially the sum
of the loads of the installation and the load of the charger (7kW or 22kW) taking into consideration the simultaneity factor. The above
example for 22kW charger was based on a domestic installation where the already installed grid power supply was 3-phase and 15kVA
and had to be upgraded to 35kVA in order to facilitate the charging station.The above example for 7kW charger was based on a
domestic installation and the charging station was connected to a new, independent power supply 03-8kVA
